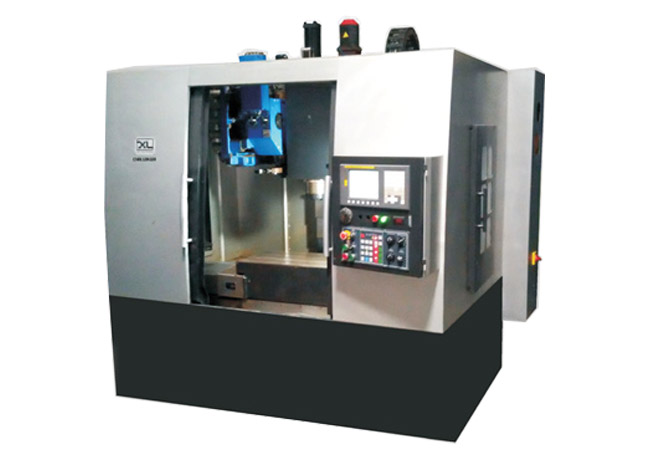

Variants in Supreme: 845

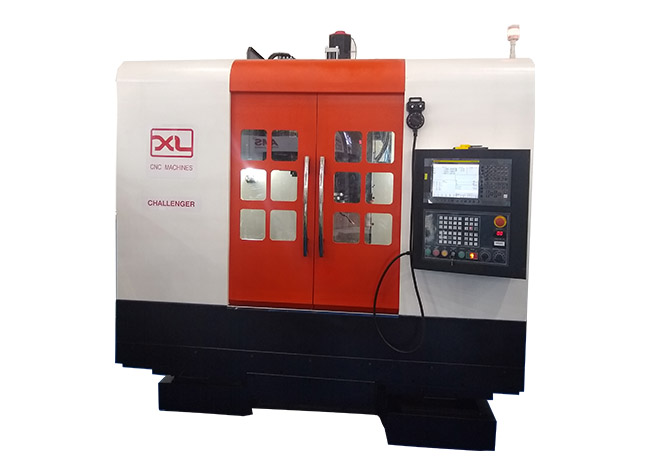

This Vertical Machining Center is designed to achieve better finishing, and better cycle time. Capable to deliver high speed performance and productivity. Provides consistent accuracy for a long time. This VMC offers great productivity and efficiency. An X-Axis traverse of 610mm, Y-Axis traverse of 450mm and Z-Axis vertical movement of 500mm. The clamping area is 450x900mm. FANUC/MITSUBISHI/SIEMENS CNC System.
Unit | SUPREME -845 | |
---|---|---|
Table | ||
Clamping Area (X*Y) | mm | 450x1000 |
No./width/CD of T-Slots | mm | 5/18/80 |
Max load on table | kgf | 600 |
Traverse | ||
Longitudinal movement(X-axis) | mm | 800 |
Transverse movement (Y-axis) | mm | 450 |
Vertical movement (Z-axis) | mm | 500 |
Spindle | ||
Taper | BT-40 | |
Speed (Std.) | RPM | 6000 |
Power | kW | 5.5/7.5* |
Axes | ||
Rapid | m/min | 30 |
Feed rate | mm/min | 1-10,000 |
Guideways | LM | |
ATC | ||
Type of tool changing system | - | Twin Arm |
No. of tools (Std.) | No. | 20 |
Max tool dia with adj pocket full | mm | 80 |
Max tool dia with adj pocket empty | mm | 125 |
Max tool length | mm | 250 |
Max tool weight | kgf | 8 |
Tool changing time (tool-tool) | sec | 2.5 |
Accuracy | ||
Positioning | mm | 0.010 |
Repeatability | mm | 0.005 |
Installation Data | ||
Machine weight | kgf | 4750 |
Floor space (L x B) | mm | 2600x2250 |
Machine height (H) | mm | 2100 |
Total connected load | kW | 15 |
Loading Height | mm | 1000 |
CNC system | FANUC / MITSUBISHI / SIEMENS |
Note: Technical Specifications and illustrations are subject to change arising out of continuous product development
